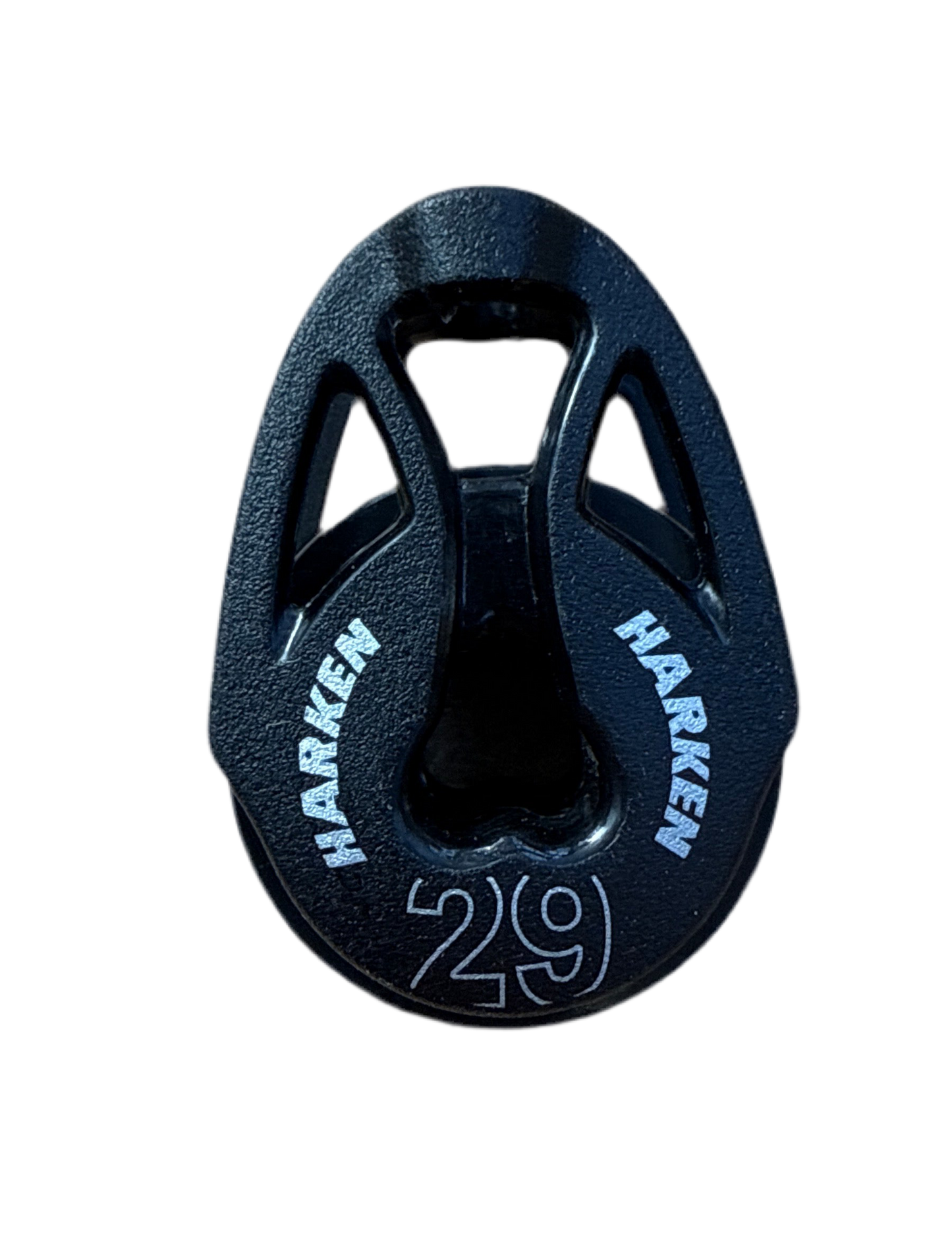

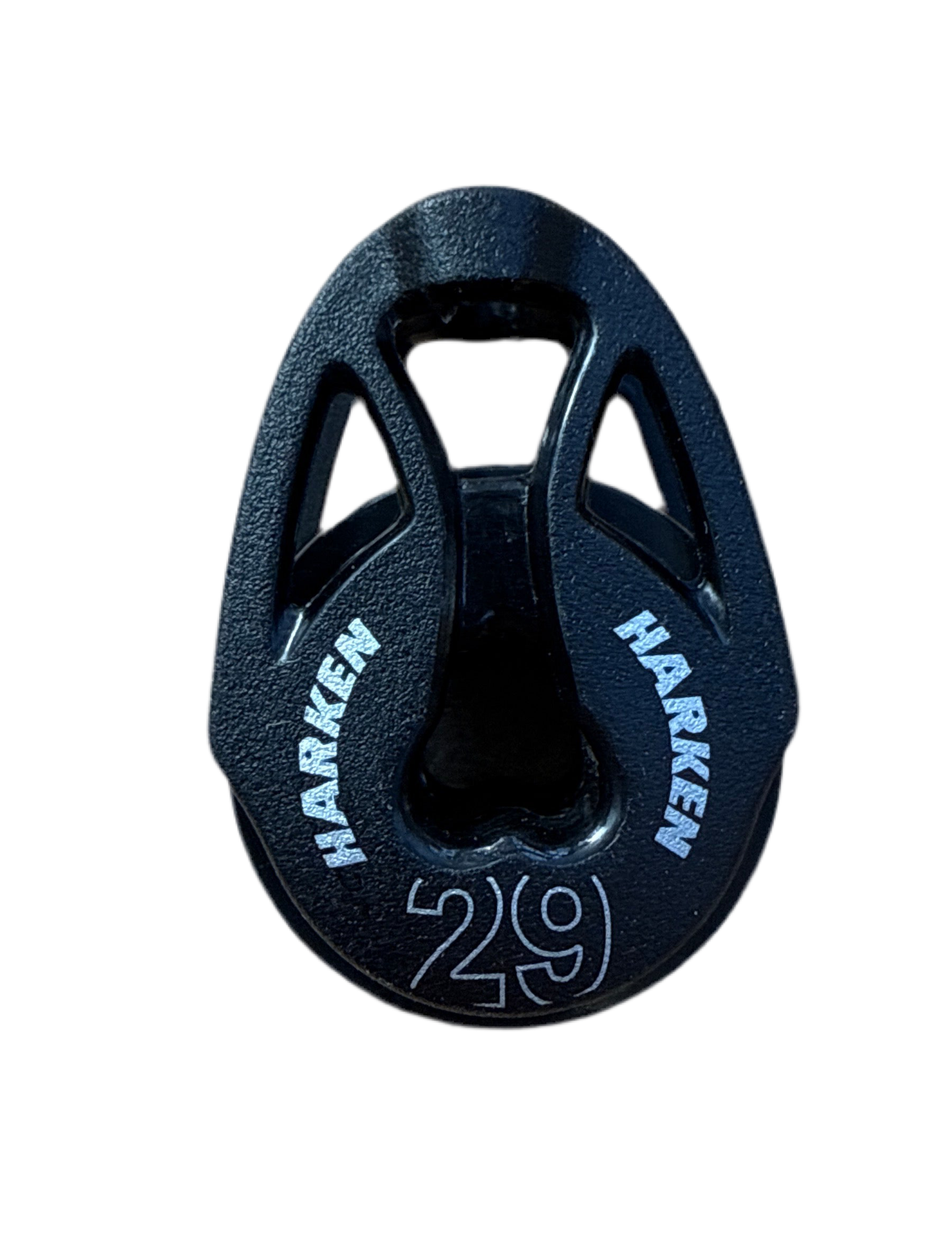

Harken 29mm Soft Attach T2 Single Block

Mainly used on the ILCA/Laser control systems

Sheave diameter - 29mm

Length overall - 43mm

Max working load - 150 Kg

Break load - 454 Kg

Max line diameter - 8mm

Weight - 12g

This is  one of an excellent range of ball bearing block designed to be both light & strong.

However its design relies upon being correctly rigged &  care needs to be taken with:

1) That the attachment lines hold the cheeks of the block together & do not pull them apart.

2) That the attachment lines hold the block at the correct  attitude & that the leads are straight.

3) That the blocks are kept clean & not subject to undue rough treatment.

In addition it should be noted that:

1) Splices are better than knots.

2) Blocks with bigger sheave diameters tend to be more efficient than blocks with smaller sheave diameters.
