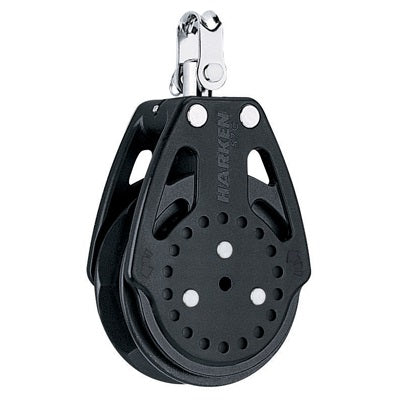

Harken 57mm Ratchamatic Block With Swivel

Harken, Carbo ratchet block with swivel - 57mm Ratcha-matic / Auto-ratchet

Sheave diameter - 57mm

Length overall - 103mm

Pin diameter - 5mm

Max working load - 227 Kg

Break load - 907 Kg

Max line diameter - 10mm

Holding power - 10:1

Weight - 104g

Used on a multitude of boats & regarded by many as the best auto-ratchet block available.

The Carbo "Ratcha-matic" is a load-sensing ratchet block that rolls freely in both directions under low loads but automatically engages the ratchet as loads increase. Shifting between the non ratchet & ratchet modes is seamless & the loading point at which this occurs is adjustable.

Provides a good balance between holding power & controlled easing.

Also available:

1)  As an on /off ratchet  - See "Harken, Carbo ratchet - 57mm on/off"

2) With higher holding powers - See "Power ratchets".
